PU TIMING BELT T10

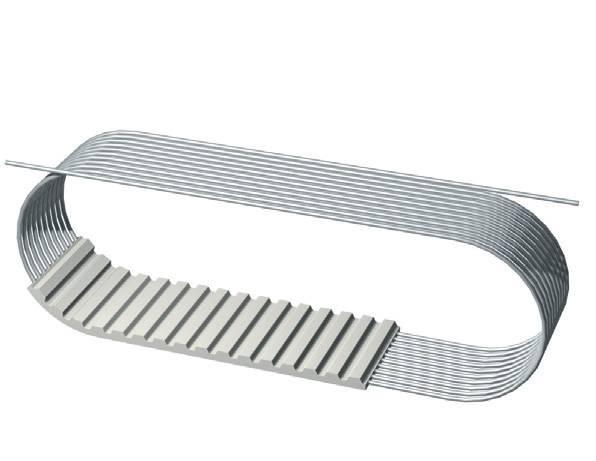

T10 timing belts are available in various versions. As an open length, we can supply the T10 in any desired length, up to lengths of up to 100 metres. This also applies to a T10 in the welded version. The T10 Flex is a version that is specially made for length by winding the cords. This T10 does not have a welded connection and is therefore stronger. The T10 Flex is bound to a minimum and a maximum length.

Contact page

endless with splice timingbelt — Endlesswith a splice

PU TIMING BELT T10

The T10 PU timing belt is standard delivered with steel or kevlar cords. Reinforced steel cords, extra flexible cords and stainless steel cords are also available. The T10 PU toothed belt has a pitch of 10mm and has a trapezoidal tooth according to DIN 7721 and is, due to its accuracy, extremely suitable for transport where good positioning is required. We can customize the T10 PU toothed belt according to your wishes:

Cleats/carries/cams
Coatings
Perforations
Longitudinal & lateral grooves

Radius milling
Vacuum chambers
Waterjet & CNC technology
Lateral slitting

Product information
Shore hardness	92° Shore A	Weigth per meter	+/- 48 g/10 mm belt width
Tensile members	steel cords, 0.6 mm	Minimum number of pulley teeth	12
Width tolerance	+/- 0.5 mm	Minimum pulley diameter	36.35 mm
Thickness toler.	+/- 0.3 mm	Minimum counter bending	60 mm
Length tolerance	+/- 0.8 mm/m

Standard widths mm (in-between sizes possible)
16	25	32	50	75	100	150	200	250	300	325	450

In addition to the complete T10 PU timing belt range, NK Technics also supplies all complementary products such as timing pulleys, clamping plates, tensioning rollers, tension bushes and belt support profiles. In summary, NK Technics is your partner for the complete T10 delivery range.

Steel	Kevlar	Stainless steel
Standard	Standard	Standard
PAZ	PAZ	PAZ
PAR	PAR	DL
PAZ-PAZ	PAZ/PAR	DL/PAZ
E-cord	PU-385-transp.
E-cord-PAZ
DL
DL-PAZ
TK5-K6x4
TK5-K6x4 PAZ
Antistatic black
DR

PAZ = nylon fabric on the tooth
PAR = nylon fabric on the back
E-cord = Extra fusible core

DL = double toothed
DR = High back
TK = Version with extruded control profile

T10 PU TIMING BELT AVAILABLE OPTIONS

The T10 PU timing belt is available with steel, kevlar and stainless steel cords, we can process/rework the T10 timing belts with our machinery according your wishes and requirements.

Timingbelt processing

With our modern machinery, which mainly contains in-house developed machines, we are able to carry out almost all activities relating to the processing and finishing of timing belts.

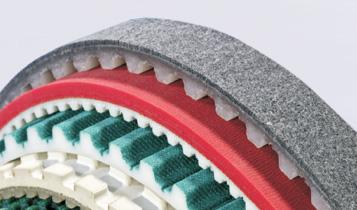

Timingbelt coating

We have a suitable coating for every transport application

Timing belt with cleets

We can handle everything from standard cleets, to customer-specific solutions, everything is as a starting point possible

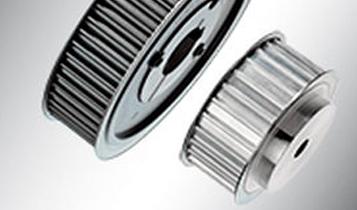

Pulleys

Whenever you are searching a standard or a special machined pulley NK Technics is the right company to help you. We deliver pulleys in all common models and materials, often used materials are Aluminum, steel, stainless steel and POM.

Components

Clamping plates, Tensioning plates, Tensioners, Tensioning bushings, Cam fasteners, Belt support

Foodgrade

We have a great know-how in producing food-approved tooth belts. Click here to see more

We are eager to help you with your project and to give you the best possible customer experience possible. We strive to be your preferred partner when it comes to finding the right timingbelt solution at all times. We are excited to hear from you and to discuss how we can be at your assistance.

PU timing belt T10

Timing Belt T10

T10 timing belts are available in various types, including endless welded, wound, Flex, and with a Pin Join connector. The standard T10 timing belt comes with steel or Kevlar cords. In addition to these standard cords, T10 timing belts are also available with extra flexible steel cords, or stainless steel cords. For T10 timing belts, we also supply the corresponding components such as clamping plates, tensioning plates, tension rollers, and T10 timing belt pulleys).

Product Information Timing Belt T10
Shore Hardness (A) Timing Belt T10	92° Shore A
Standard Tensile Cords Timing Belt T10	Steel 0.6 mm
Width Tolerance Timing Belt T10	+/- 0.5 mm
Thickness Tolerance Timing Belt T10	+/- 0.3 mm
Length Tolerance Timing Belt T10	+/- 0.8 mm/m
Weight per Meter Timing Belt T10	+/- 48g/10mm belt width per meter
Minimum Number of Teeth Timing Belt Pulley T10	12 teeth
Minimum Diameter Timing Belt Pulley T10	36.35 mm
Minimum Diameter Counterflex	60.00 mm

Standard T10 Timing Belt Widths mm (intermediate sizes possible)
16	25	32	50	75	100	150	200

Menu

PU TIMING BELT T10

OpenLength

Endlesswith a splice

TrulyEndless

PINJOIN

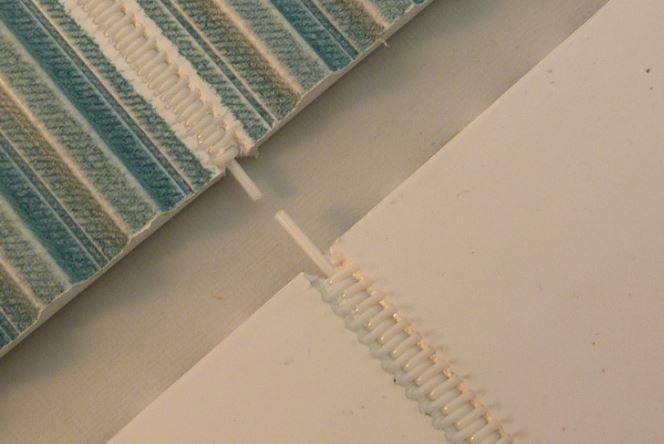

HingeJoint
