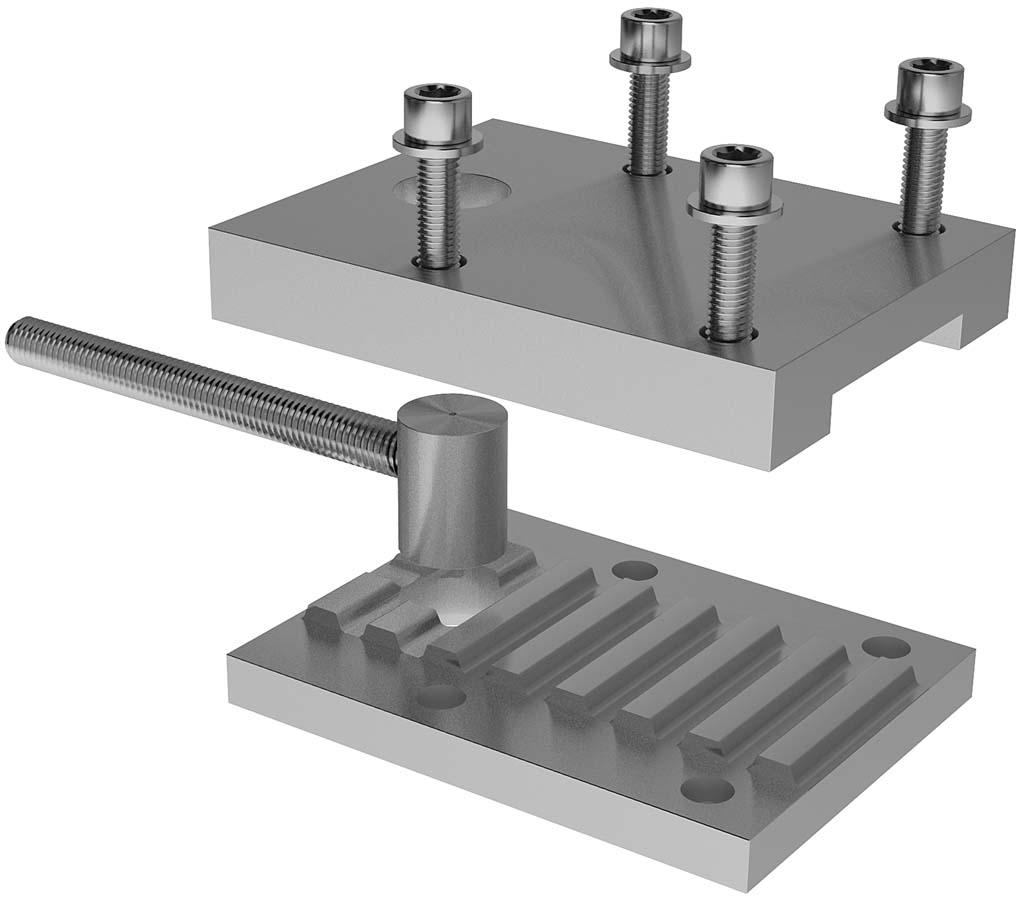

Tension plate variant A type 3
Tensioning plate type A type 3 is typically used for " free suspension " of the belt tension on the clamping unit. A protection which may be necessary against twisting and turning must be provided by either fixing the clamping unit itself or corresponding limiting or guiding elements in the vicinity of the clamping plate.
| Spanplaat variant A type 3 | |||||
| Riembreedte/type | B (mm) | L (mm)M | M (mm) | m1 (mm) | H (mm) |
| 25/T5 | 50 | 80 | 38 | 10,25 | 18,5 |
| 32/T5 | 60 | 80 | 46 | 10,25 | 18,5 |
| 50/T5 | 75 | 80 | 62 | 10,25 | 18,5 |
| 25/T10 | 50 | 80 | 38 | 11,25 | 19,5 |
| 32/T10 | 60 | 80 | 46 | 11,25 | 19,5 |
| 50/T10 | 75 | 80 | 62 | 11,25 | 19,5 |
| 25/AT5 | 50 | 80 | 38 | 10,75 | 19,0 |
| 32/AT5 | 60 | 80 | 46 | 10,75 | 19,0 |
| 50/AT5 | 75 | 80 | 62 | 10,75 | 19,0 |
| 25/ATL5 | 50 | 80 | 38 | 10,75 | 19,0 |
| 32/ATL5 | 60 | 80 | 46 | 10,75 | 19,0 |
| 50/ATL5 | 75 | 80 | 62 | 10,75 | 19,0 |
| 25/AT10 | 50 | 80 | 38 | 11,25 | 19,5 |
| 32/AT10 | 60 | 80 | 46 | 11,25 | 19,5 |
| 50/AT10 | 75 | 80 | 62 | 11,25 | 19,5 |
| 25/ATL10 | 50 | 80 | 38 | 11,00 | 19,5 |
| 32/ATL10 | 60 | 80 | 46 | 11,00 | 19,5 |
| 32/BATK | 60 | 80 | 46 | 11,25 | 19,5 |
| 32/BATK | 75 | 80 | 62 | 11,25 | 19,5 |
