T10 Food grade

 Tandriem T10 FDA foodgrade



M = Open length

V = Endless with a splice

T10 FOOD GRADE ( M/V )
Standard length  50 of 100 m rolls
Lengths > 100 m  on request
Minimum length joined (V)  700 mm
Standard material   PU 85° Shore A
Colour  blue
Tensile members  Kevlar, 0,6mm
Minimum number of pulley teeth  12
Minimum pulley diameter  36,35
Minimum counter bending

 50



Belt width in mm
16 25 32 50 75 100



T10 FOOD GRADE ( M/V )
Belt width b (mm) 16 25 32 50 75 100
M Kevlar tension member F (N) 1000 1750 2350 3970  4900 6700
V  Kevlar tension member F (N) 500 870 1170 1980  2450  3350
Weigth per meter KG/M 0.064 0.100 0.128  0.200  0.280 0.400

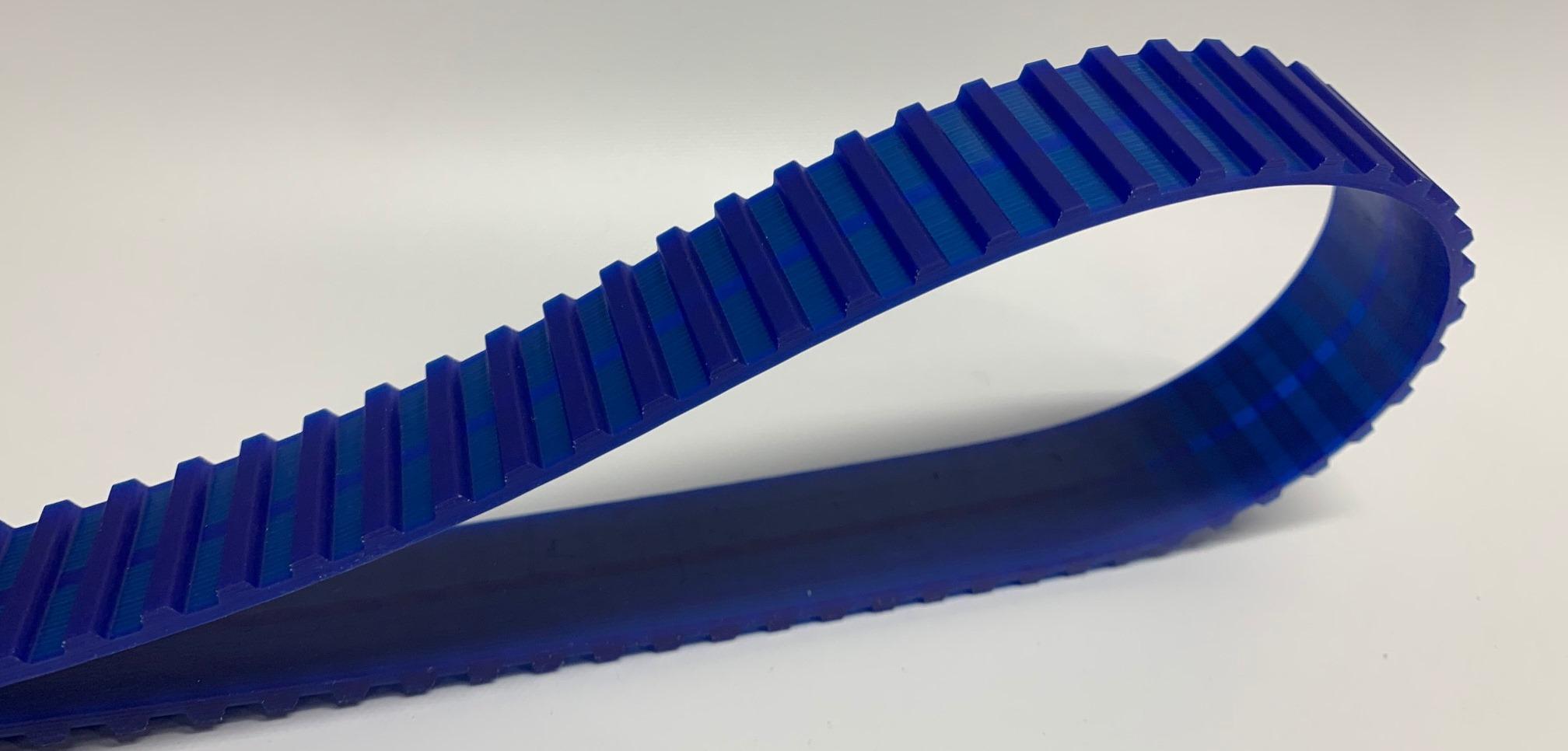

 Timing belt T10 food Grade - FDA



Timing Belt T10 with FDA cleats

FDA tandriem T10 foodgrade
