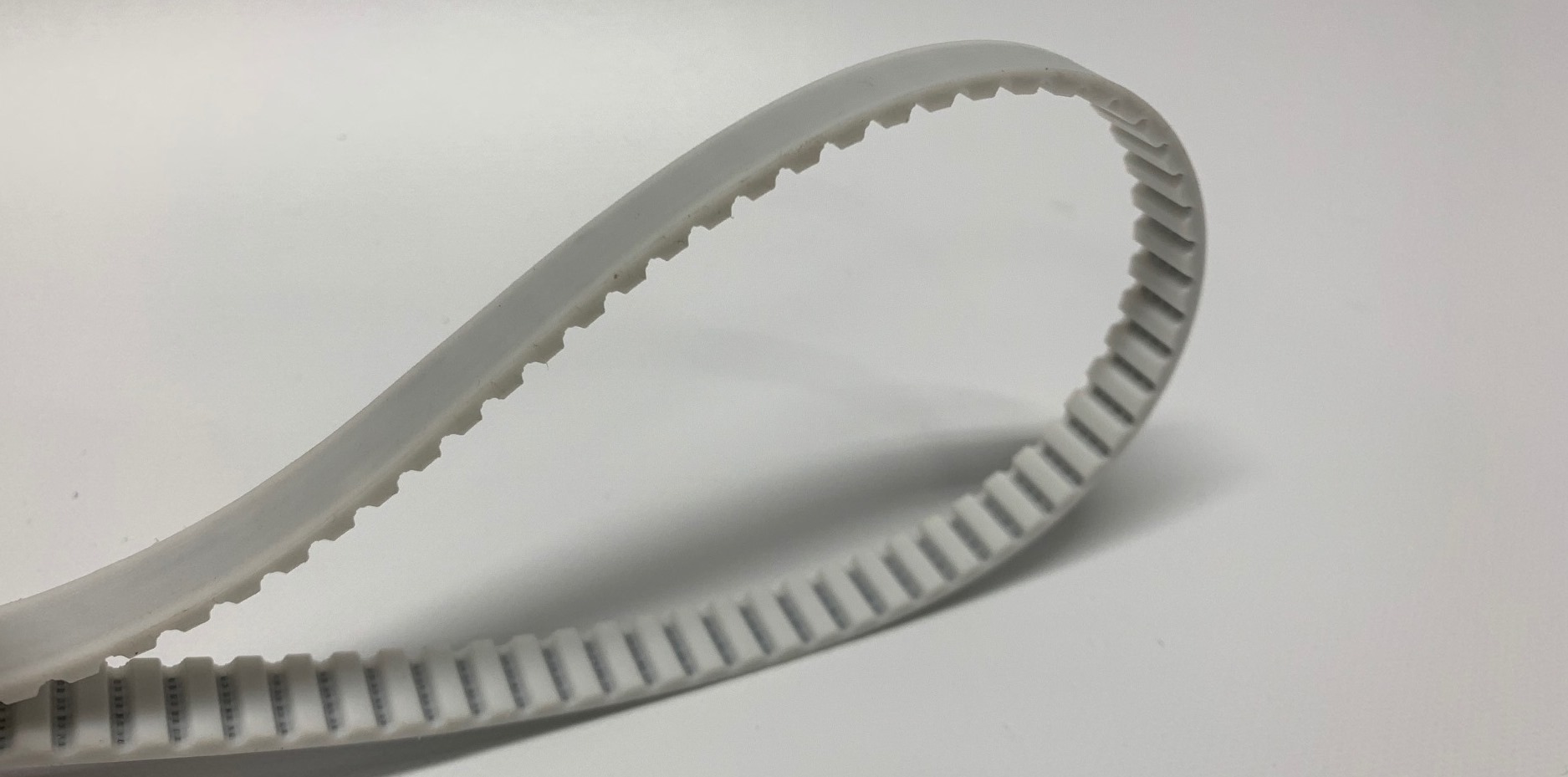

PU timing belt AT5
We have AT5 timing belts with the following cords in stock; steel, kevlar, extra flexible, extra reinforced steel and stainless steel. We also supply the related AT5 components such as AT5 pulleys, AT5 clamping plates, tension plates, tension rollers, belt support and clamping devices.
AT5 toothed belts are available in the following versions; endless with a splice, truly endless, Flex and with a Pin Join connector.
Ask our specialists about all the possibilities.
| Product details Timing belt AT5 | |
| Shore hardness (A) PU timing belt AT5 | 92° Shore A |
| Standard cords PU timing belt AT5 | steel 0.5 mm |
| Width tollerance PU timing belt AT5 | +/- 0.5 mm |
| Height tollerance PU timing belt AT5 | +/- 0.2 mm |
| Length tollerance PU timing belt AT5 | +/- 0.8 mm/M |
| Weight per meter timing belt PU AT5 | +/- 30g/10mm belt width per meter |
| Minimum quantity of teeth pulley AT5 | 12 teeth |
| Minimum diameter pulley AT5 | 17.85 mm |
| Minimum diameter counterbend | 50.00 mm |
| Timing belts at5 standard widths in mm (in-between sizes possible) | |||||||
| 10 | 16 | 25 | 32 | 50 | 75 | 100 | 150 |
The AT5 PU timing belt is available with steel, kevlar and stainless steel cords, we can process/rework the AT5 timing belts with our machinery according your wishes and requirements.
- PU timing belt AT5 - Open length, available options
- PU timing belt AT5 - Endless with a splice, available options
- PU timing belt AT5 - Truly endless, available options
- PU timing belt AT5 - Flex, available options
- PU timing belt AT5 - Pin Join, available options
- PU timing belt AT5 - ATk5-K6 tracking guide available options

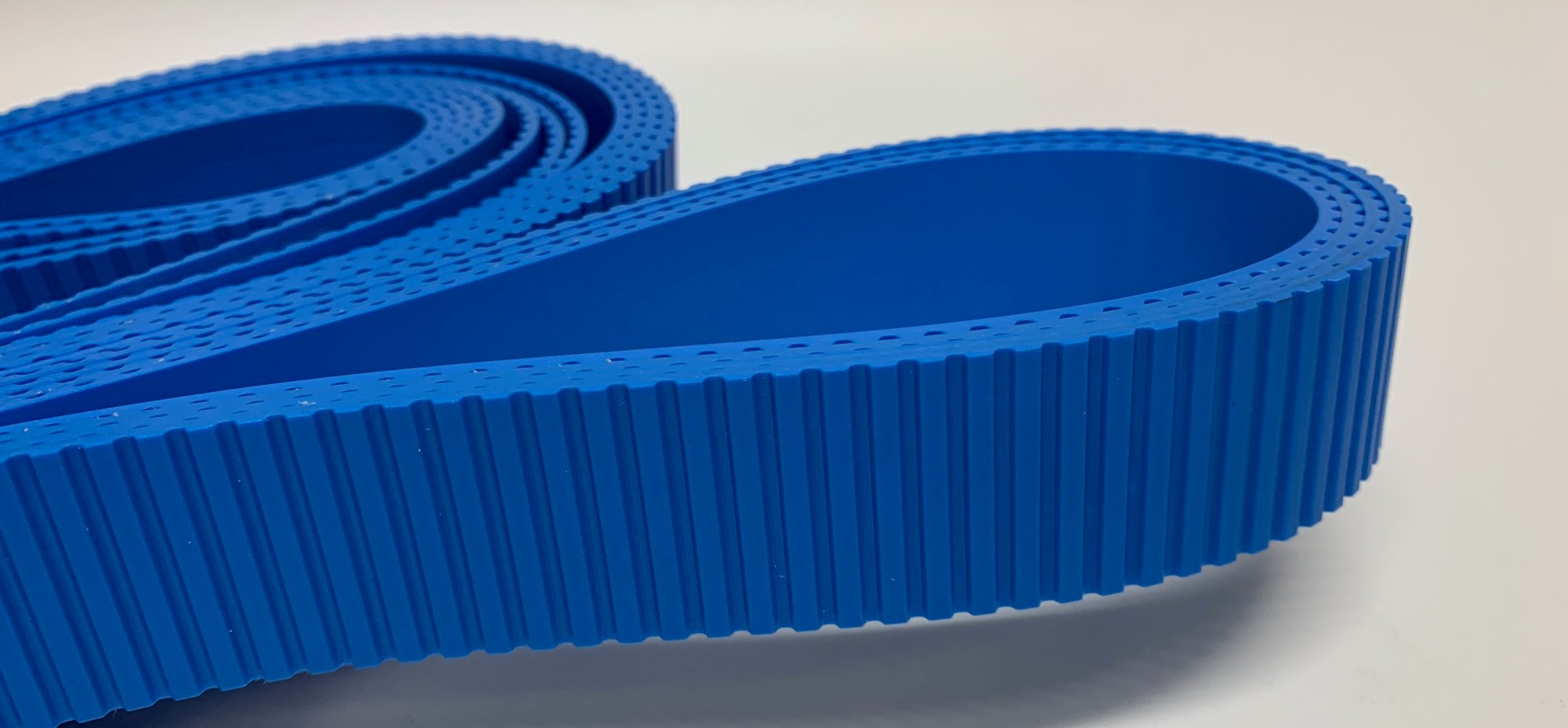

- PU timing belt AT5 - Breco Protect FDA, available options

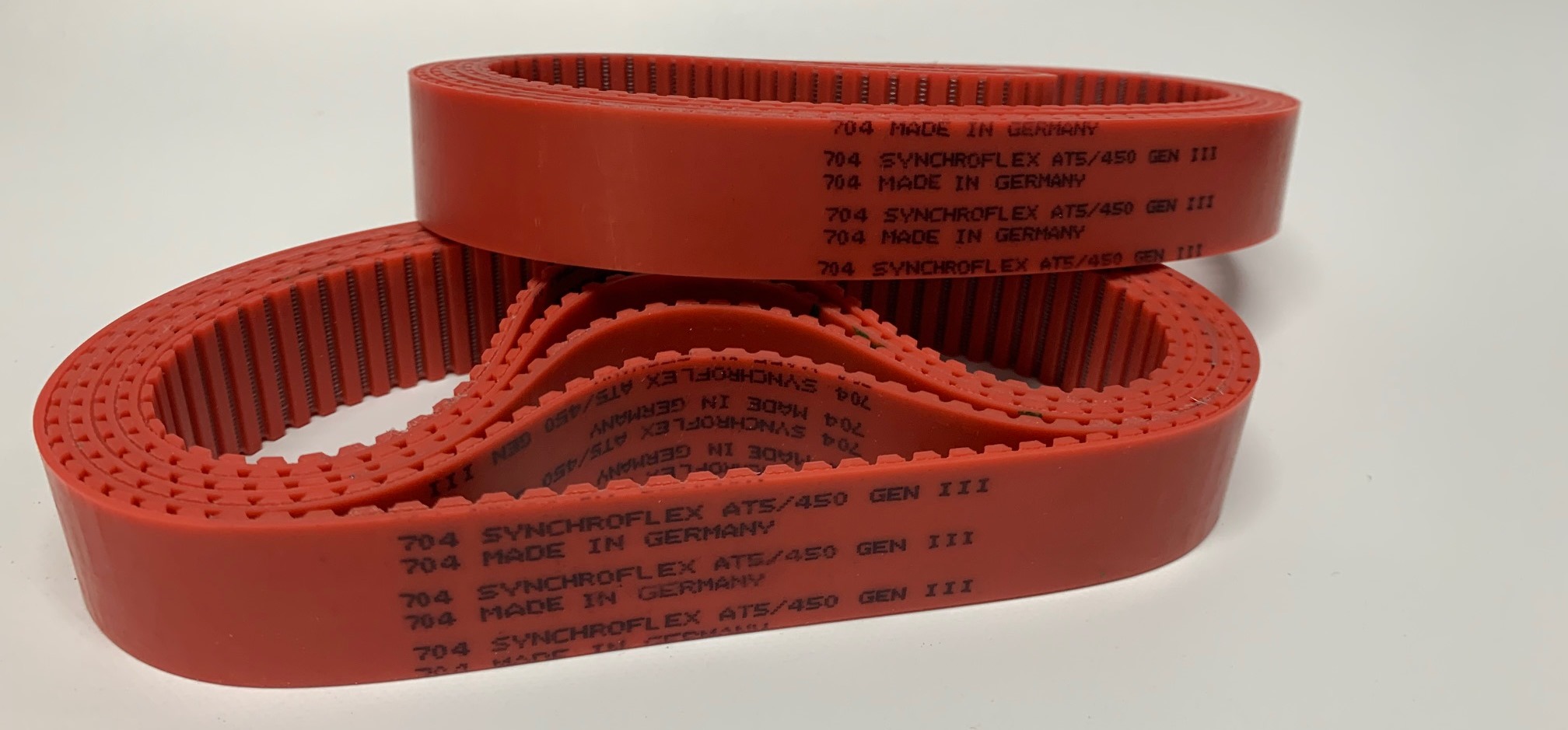

- PU timing belt AT5 - Synchroflex GENIII available options
Below you will see the several available options.
