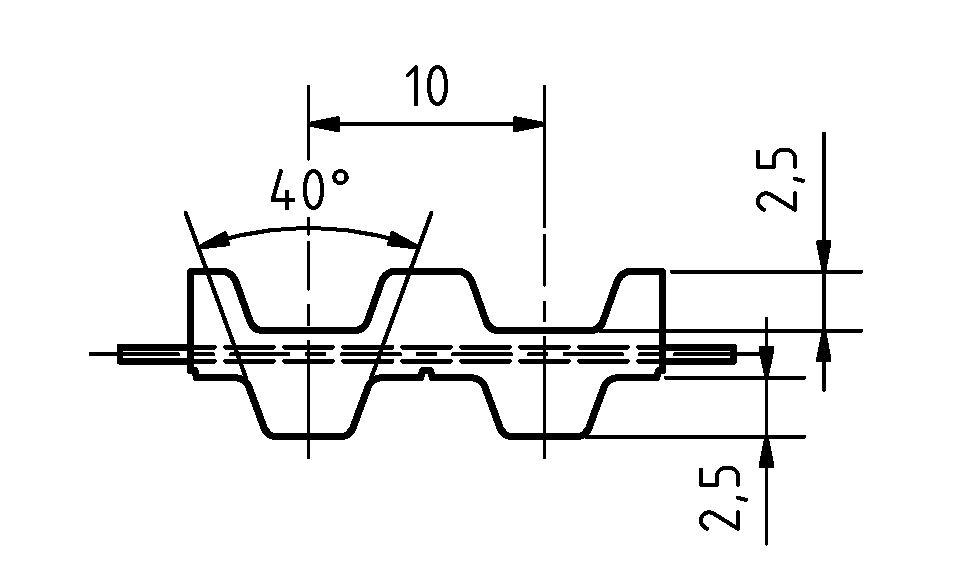

PU timing belt T10-DL



 T10-DL

Product information
 Shore hardness (A)  92° Shore A  Weigth per meter +/- 68 g/10 mm belt width
 Tensile members  Steel  Minimum number of pulley teeth  20
 Width tolerance  +/- 0.5 mm  Minimum pulley diameter  60 mm
 Thickness tolerance  +/- 0.3 mm  Minimum counter bending  60 mm
 Length tolerance  +/- 0.8 mm/m



Standard widths in mm (in-between sizes possble)
16 25 32 50 75 100



Available as:

  • open length
  • endless with a splice
  • truly endless (moulded/flex)
  • Pin Join



Available types:

  • steel
  • steel-PAZ
