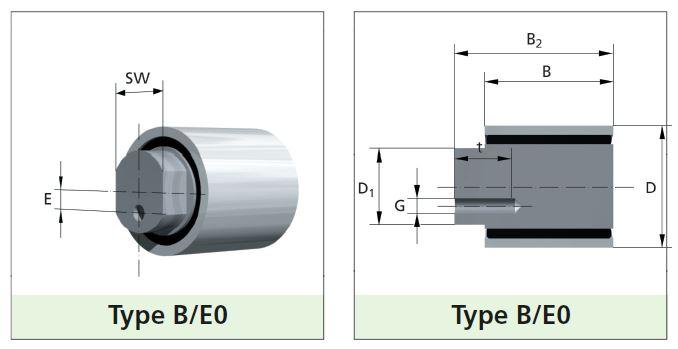

Tension roller type B/E0 smooth
| Tension rollers type B/E0 smooth | ||||||||||
| B (mm) | Type | Flanges | Max. belt width | db (mm) | B2 (mm) | E (mm) | G | t (mm) | D1 (mm) | SW (mm) |
| 34 | 32 | 0 | 25 | 0 | 42 | 5 | M6 | 10 | 20 | 17 |
| 40 | 60 | 0 | 32 | 0 | 50 | 5 | M12 | 20 | 30 | 27 |
| 64 | 60 | 0 | 50 | 0 | 74 | 5 | M12 | 20 | 30 | 27 |
| 40 | 80 | 0 | 32 | 0 | 50 | 5 | M12 | 20 | 30 | 27 |
| 64 | 80 | 0 | 50 | 0 | 74 | 5 | M12 | 20 | 30 | 27 |
| 90 | 80 | 0 | 75 | 0 | 110 | 5 | M20 | 32 | 45 | 36 |
| 40 | 120 | 0 | 32 | 0 | 50 | 5 | M12 | 20 | 30 | 27 |
| 64 | 120 | 0 | 50 | 0 | 74 | 5 | M12 | 20 | 30 | 27 |
| 70 | 120 | 0 | 50 | 0 | 85 | 5 | M20 | 30 | 45 | 36 |
| 90 | 120 | 0 | 75 | 0 | 110 | 5 | M20 | 32 | 45 | 36 |
| 40 | 150 | 0 | 32 | 0 | 50 | 5 | M12 | 20 | 30 | 27 |
| 64 | 150 | 0 | 50 | 0 | 74 | 5 | M12 | 20 | 30 | 27 |
| 90 | 150 | 0 | 75 | 0 | 110 | 5 | M20 | 32 | 45 | 36 |
