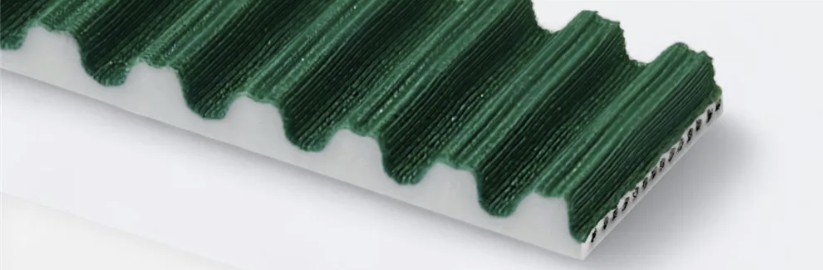

PU timing belt RPP5M
| Product information | |||
| Shore hardness (A) | 92° Shore A | Weigth per meter | +/- 46 g/10 mm belt width |
| Tensile members | steel cords, 0.5 mm | Minimum number of pulley teeth | 16 |
| Width tolerance | +/- 0.5 mm | Minimum pulley diameter | 30 mm |
| Thickness tolerance | +/- 0.2 mm | Minimum counter bending | 60 mm |
| Length tolerance | +/- 0.8 mm/m | ||
| Standard widths in mm (in-between sizes possible) | |||||
| 10 | 15 | 25 | 30 | 50 | 100 |
Available as:
- Open length
- Endless with a splice
- Truly endless (moulded/flex)
The RPP5M PU timing belt is available with steel, kevlar and stainless steel cords, we can process/rework the RPP5M timing belts with our machinery according your wishes and requirements.
Below you will see the several available options.
| Steell | Kevlar | Stainless steel |
| Standard | Standard | Standard |
| PAZ | PAZ | |
| E-cords |
PAZ = nylon fabric on tooth side
PAR = nylon fabric on back side
E-cords = extra flexible cords
DL = double toothed
DR = high back
TK = version with extruded guide
L = reïnforced cords
| Click here for extra options: | |||
| COATINGS | CLEATS | PROCESSING | PULLEYS |
| JOINTS | COMPONENTS |
TRACKING PROFILE | FOOD GRADE |
