PU timing belt ATK10-K13



 PU tandriem ATK10K13

Product information timing belt ATK10-K13
 Shore hardness (A)  92° Shore A  Weigth per meter timing belt ATK10-K13 +/- 50 g/10 mm riem breedte
 Tensile members  Staal  Minimal number of pulley teeth  20
 Width tolerance  +/- 0.5 mm  Minimal pulley diameter  80 mm
 Thickness tolerance  +/- 0.3 mm  Minimal counter bending  80 mm
 Length tolerance  +/- 0.8 mm/m



Timing belt ATK10-k13 standard widths in mm (in-between sizes possible)
25 32 50 75 100 150



Timing belt ATK10-K13  available as:

  • Open length
  • Endless with a splice
  • Truly endless (moulded/flex)
  • Pin Join



Tensile members:

  • steel (PAZ, PAR & PAZ/PAR)
  • kevlar
  • stainless steel





ATK10-K13 Timing belt

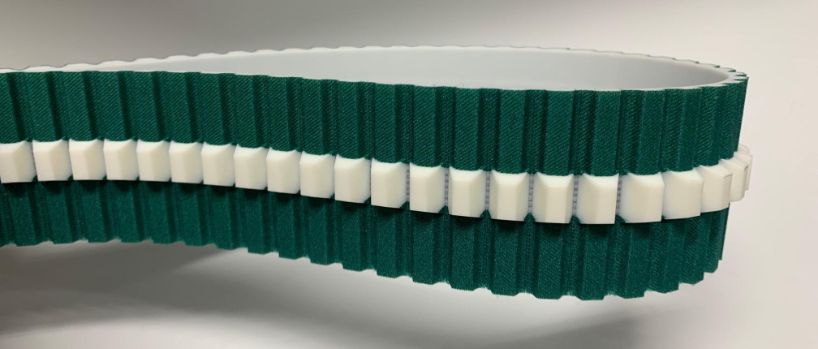

Timing belt ATK10-K13 PAZ
