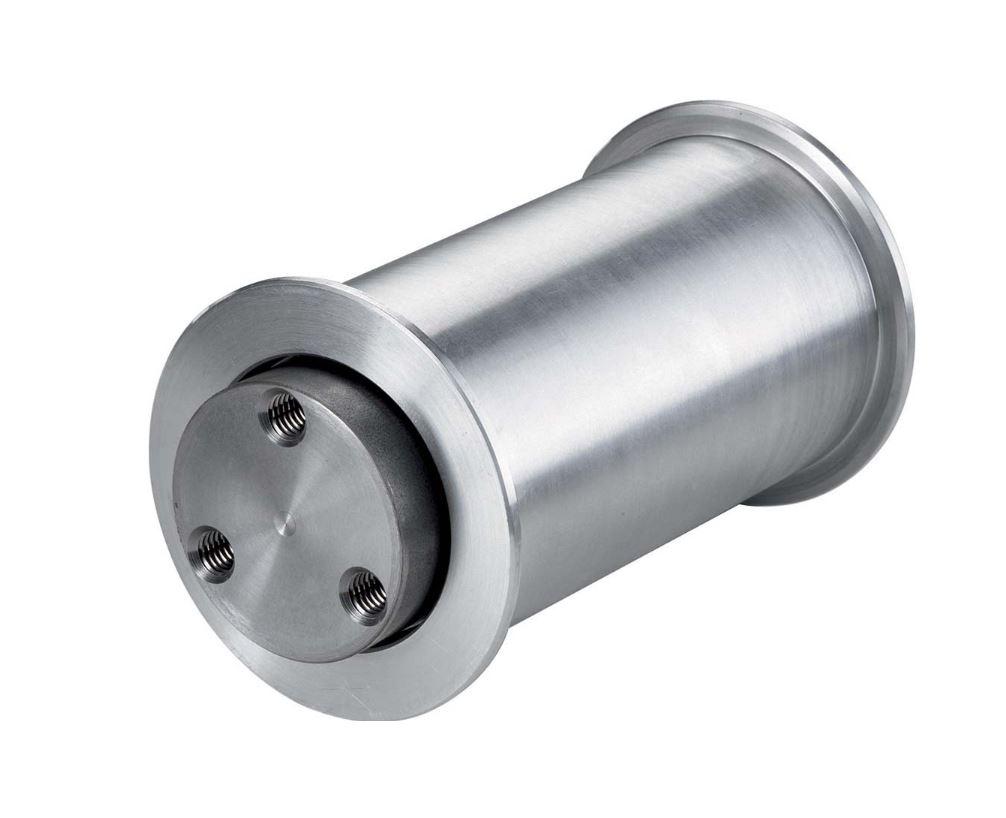

Tension rollers type B/F2 | |||||||||
B (mm) | D (mm) | Number of flanges | Max. belt width | db (mm) | B2 (mm) | K (mm) | G | t (mm) | D1 (mm) |
114 | 60 | 2 | 100 | - | 124 | 34 | M6 (3x) | 15 | 45 |
114 | 80 | 2 | 100 | - | 124 | 34 | M12 (3x) | 15 | 45 |
70 | 120 | 2 | 50 | - | 85 | 65 | M12 (3x) | 24 | 85 |
90 | 120 | 2 | 75 | - | 110 | 65 | M12 (3x) | 24 | 85 |
117 | 120 | 2 | 100 | - | 131 | 65 | M12 (3x) | 24 | 85 |
70 | 180 | 2 | 50 | - | 85 | 65 | M12 (3x) | 25 | 106 |
90 | 180 | 2 | 75 | - | 110 | 80 | M16 (3x) | 25 | 106 |
117 | 180 | 2 | 100 | - | 131 | 80 | M16 (3x) | 25 | 106 |
