M = Open length
V = Endless with a splice

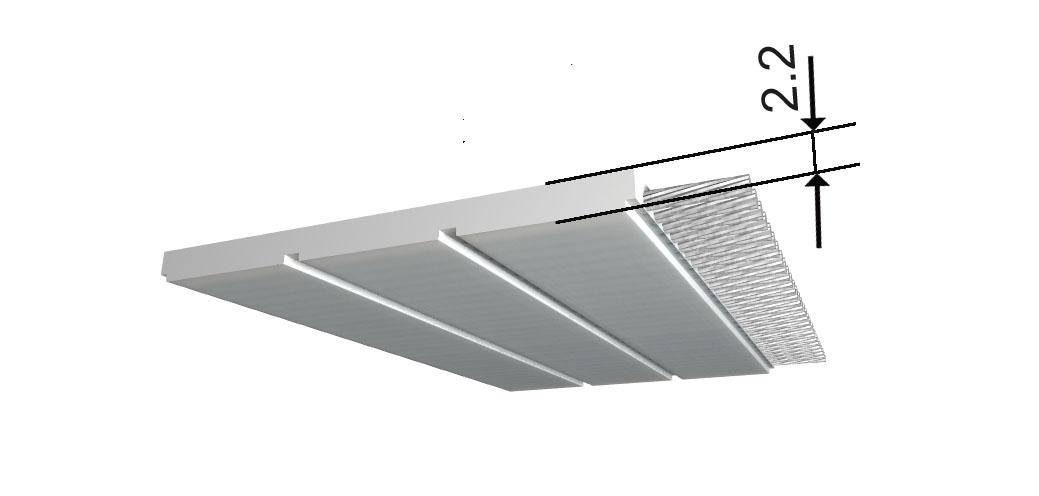

F2,2 ( M/V ) | |
Standard length | Rolls of 50 & 100 m |
Lengths > 100 m | On request |
Minimum length joined (V) | 880 |
Standard material | PU 92° Shore A |
Color | White |
Tensile members / version | Steel - E cords - Stainless steel / PAZ |
Minimum pulley diameter | 60 |
Minimum counter bending |
120 |
Standard widths in mm (in-between sizes possible) | |||||||
20 | 25 | 30 | 32 | 40 | 50 | 75 | 100 |
F2,2 ( M/V ) | ||||||||||
Belt width | b (mm) | 20 | 25 | 30 | 32 | 40 | 50 | 75 | 100 | |
M | Steel cords |
F_zul (N) | 2500 | 3500 | 4500 | 5000 | 5500 | 7000 | 10000 | 14000 |
F_break (N) | 10000 | 14000 | 18000 | 20000 | 22000 | 28000 | 40000 | 56000 | ||
V | Steel cords |
F_zul (N) | 1250 | 1750 | 2250 | 2500 | 2750 | 3500 | 5000 | 7000 |
Weigth per meter | KG/M | 0.071 | 0.092 | 0.120 | 0.130 | 0.146 | 0.213 | 0.309 | 0.366 |
