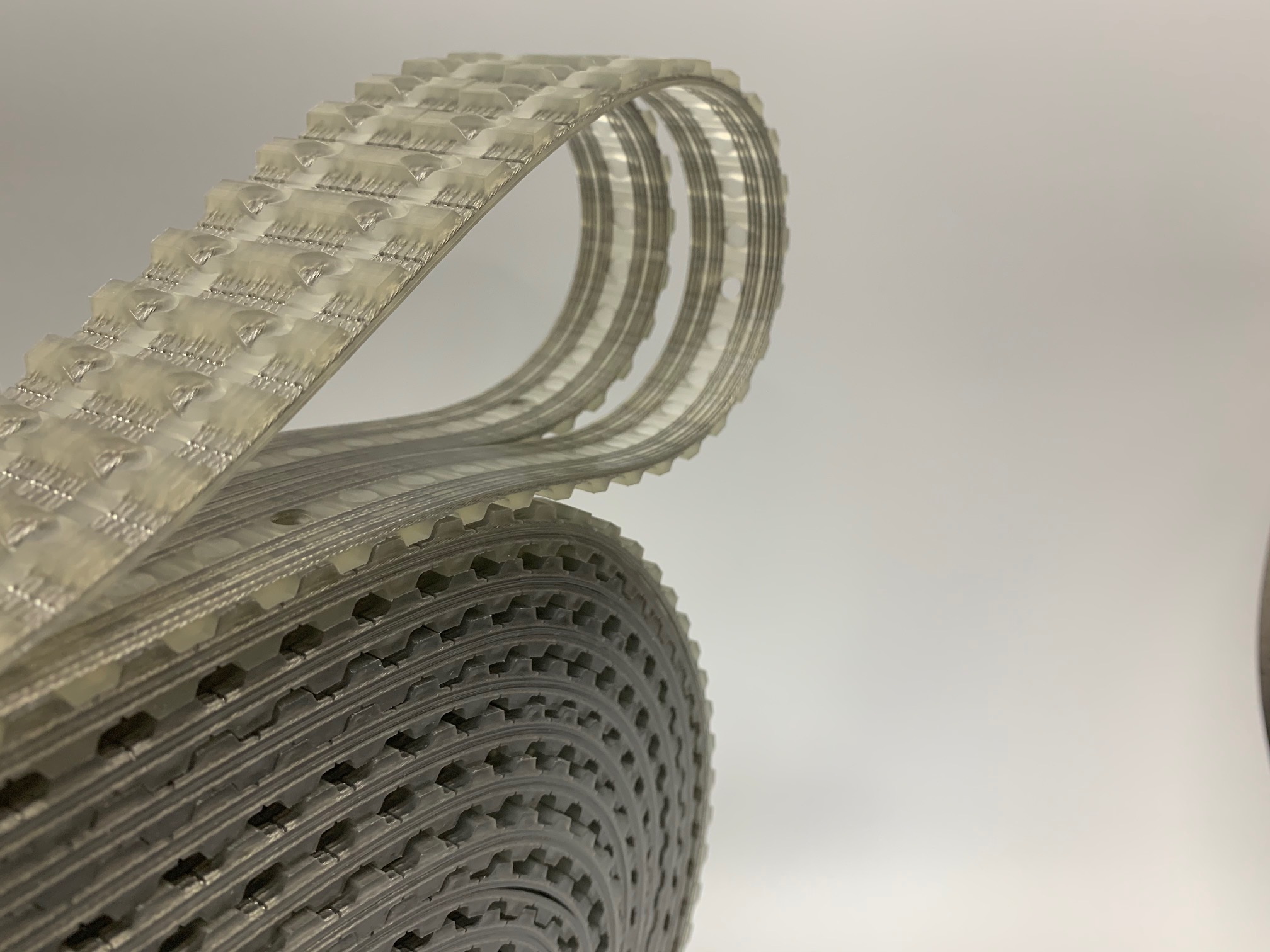

ATN10 Food grade
M = Open length
V = V = Endless with a splice
| ATN10 FOOD GRADE ( M/V ) | |
| Standard length | 50 of 100 m rolls |
| Lengths > 100 m | on request |
| Minimum length joined (V) | 880 mm |
| Standard material | TPUFD1 - 92° Shore A. |
| Colour | transparant |
| Tensile members | RVS |
| Minimum number of pulley teeth | 25 |
| Minimum pulley diameter | 80 |
| Belt width in mm | |||
| 25 | 50 | 75 | 100 |
| ATN10 FOOD GRADE ( M/V ) | ||||||
| Belt width | b (mm) | 25 | 50 | 75 | 100 | |
| M | Stainless steel cords | F (N) | 2150 | 4300 | 6450 | 8600 |
| Spec. elasticity | C (N) | 0.54.10-6 | 1.08.10-6 | 1.61.10-6 | 2.15.10-6 | |
| V | Stainless steel cords | F (N) | 1000 | 2000 | 3000 | 4000 |
| Weigth per meter | KG/M | 0.120 | 0.240 | 0.360 | 0.480 | |
