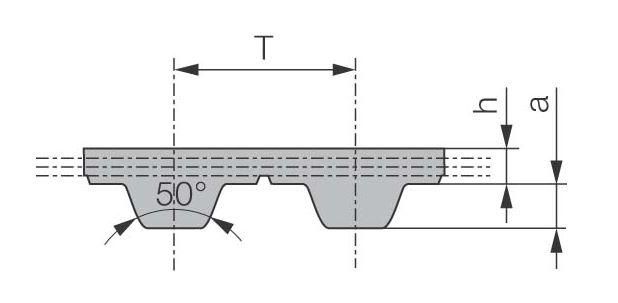

PU timing belt ATN12,7



 PU tandriem ATN 12,7

Product information
 Shore hardness (A)  92° Shore A  Weigth per meter +/- 48 g/10 mm belt width
 Tensile members  steel cords, 0.9 mm  Minimum number of pulley teeth  25
 Width tolerance  +/- 0.5 mm  Minimum pulley diameter  80 mm
 Thickness tolerance  +/- 0.3 mm
 Length tolerance  +/- 0.8 mm/m



Standard widths in mm (in-between sizes possible)
25 50 75 100





Available as:

  • Open length
  • Endless with a splice
  • Truly endless (moulded/flex)
  • Pin Join
  • DC connector



The ATN12,7 PU timing belt is available with steel and stainless steel cords, we can process/rework the ATN12,7 timing belts with our machinery according your wishes and requirements.

Below you will see the several available options.

  Steel   Stainless steel
 Standard  Standard
 PAZ  PAZ
 PAR
 PAZ/PAR
 ATN10-K6






PAZ = nylon fabric on tooth side

PAR = nylon fabric on back side

E-cords = extra flexible cords

DL = double toothed

DR = high back

TK = version with extruded guide

ATL = reïnforced cords



Click here for extra options:
COATINGS
CLEATS PROCESSING PULLEYS
JOINTS
COMPONENTS TRACKING PROFILE FOOD GRADE
