HTD 8M pulleys belt width 20mm

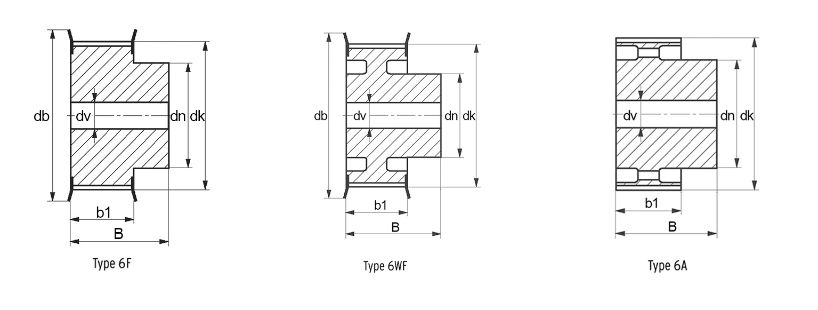

Number of teeth Type Mat. Article description Diameter Width Weigth
        dk db dn dv b1 B kg

22 6F  St  22-8M-20 54,65 60,0 43 12 28 38 0,540
24 6F St 24-8M-20 59,74 66,0 45 12  28 38 0,650
26 6F St 26-8M-20 64,84 71,0 50 12  28 38 0,800
28 6F  St 28-8M-20 70,08  75,0  50 15  28 38 0,870
30 6F St 30-8M-20 75,13 83,0 55 15  28  38 1,020
32 6F St

32-8M-20

80,16 87,0 60 15  28 38 1,200
34 6F St 34-8M-20 85,22 91,0 70 15 28 38 1,400
36 6F St 36-8M-20 90,30 98,5 70 15 28 38 1,550
38 6F St 38-8M-20 95,39 103,0 75 15 28 38 1,650
40 6F GG 40-8M-20 100,49 106,0 75 15 28 38 1,740
44 6F GG 44-8M-20 110,67 119,0 75 15 28 38 2,100
48 6F GG 48-8M-20 120,86 127,0 75 15  28    2,440

56 6WF GG 56-8M-20 141,23 148,0 80 15 28 38 2,600
64 6WF GG 64-8M-20 161,60 168,0 80 15 28 38 2,900
72 6WF GG 72-8M-20 181,97 192,0  80 15 28 38 3,100

80 6A GG 80-8M-20 202,35 90 15 28 38 3,800
90 6A GG 90-8M-20 227,81 90 15 28 38 4,200
112 6A GG 112-8M-20 283,83 90 18 28 38 5,210
144 6A GG 144-8M-20 365,32 90 20 28 38 7,510
168 6A  GG 168-8M-20 426,44  100  20 28  38 10,010
192 6A GG 192-8M-20 487,55   100 20  28  38  13,000





Timing belt pulleys HTD8M
